What is Bulk Pay file name convention, file format and sample in csv?

Introduction

This document describes the file format of BulkPay – Payment & Payroll. The file can be used for type of transactions below:-

a.	Bulk Payment
b.	Payroll
c.	Loan Repayment

Acronyms

The acronyms below will represent the file structure for BulkPay.

Acronym	Definitions
M	Mandatory
O	Optional
C	Conditional (Mandatory based on other field(s) or condition(s))
AN	Alphabetical Characters A - Z (upper case) A - z (lower case) Numeric Characters 0-9 Special Characters /-?:().,’+Space
N	Numeric Characters 0-9

File Format

1.	Field separator is , (Comma)
2.	No Tab or non-supported special characters allowed
3.	If the field value has , (Comma), please specify entire field within double-quote characters. Eg : “ABC,DEF”
4.	Each records need to end with new line character
5.	All fields and line records must match with the file format specification described in this document

BulkPay – Payroll & Payment File Specification

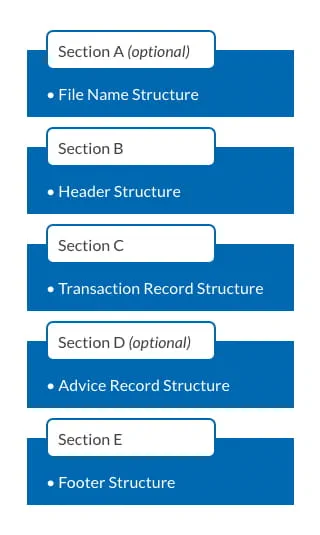

The file is in text format and contains 5 major structures:

Each file is organized as follows:

Header
              First Transaction Data
              First Advice Data (optional)
              Second Transaction Data
              Second Advice Data (optional)
              •
              •
              Last Transaction Data
              Last Advice Data (optional)
Footer

Section A - File Name Structure

The file name is constructed based on the certain information gathered. Below table shows the information needed for the filename structure:

NO	CODING	DETAILS	LENGTH (CHARACTERS)	SAMPLE
1	IDENTIFIER	e-Payment File type to -'PAYMENT' for Payment -'PAYROLL' for Payroll -'LOAN' for Loan Repayment	4	PAYMENT
2	COMPANY CORPORATE ID	Corporate ID as provided by the bank	6	000001
3	UPLOAD DATE	Date of File Upload	8	01012017
4	FILE RECORD NO	Unique record number (per day) defined by customer.	3	001
5	FILE EXTENSION	Hardcode as '.CSV'	4	.CSV

* You need to add the '_' in between the coding.

File name example:PAYMENT_000001_01012017_001.CSV

Section B - Header Structure

Field Position	Length	Type	Mandatory /Optional / Conditional	Description	Remarks
1	2	N	M	Record Type	"00" is Message Header
2	8	AN	M	ePayment File Identifier	"Bulk Payment" (01) "Payroll (02)" "Loan Repayment" (03) Transaction workflow will initiate based on mapping below 1. 01 -> Initiate transaction workflow as 'Bulk Payment" 2. 02 -> Initiate transaction workflow as 'Smart Payroll" 3. 03 -> Initiate transaction workflow as 'Loan Repayment"
3	6	N	M	Corporate ID	REFLEX Corporate ID provided by RHB
4	10	AN	C	Subsidiary ID	This field is only applicable for File upload via SFTP/H2H. Subsidiary ID refers to Maker Subsidiary ID
5	40	AN	M	Corporate Name	Corporate Short Name
6	14	N	M	Debiting Account Number	RHB Bank Account Number only.
7	8	AN	O	Payment Date	DDMMYYYY If blank, system default to today date (regardless of holiday and pass cut-off time)
8	20	AN	M	File Batch Number	Unique Batch Number. The information will be reflected in the ‘Recipient Reference’ field in Account statement (Only applicable to Lump sum Debiting Mode)
9	15	AN	O	Business Registration Number	Company business registration number
10	1	AN	O	Authorization Type	"P" - Pre Authorized (only applicable for File Upload from SFTP/H2H) "A" - Authorization Required in Reflex Default to 'A' if field is empty
11	1	AN	O	Loan Reduction Indicator	Values : Y or N Applicable for payroll ONLY (Bank@Work) If the value provided is other than "Y" or "N", system to default the value to "N"
12	1	AN	O	Duplicate Account Checking	Values : Y or N Applicable for Payroll and Loan Repayment ONLY if the value is "Y", system will perform account number duplicate checking within the file
13	1	AN	O	Beneficiary ID Checking	Value : Y or N Applicable for Payroll ONLY If the value provided is other than "Y" or "N", system to default the value to "N"
14	100	AN	O	Filler	to key in separator (,)
15	100	AN	O	Filler	to key in separator (,)
16	100	AN	O	Filler	to key in separator (,)
17	100	AN	O	Filler	to key in separator (,)
18	100	AN	O	Filler	to key in separator (,)
19	100	AN	O	Filler	to key in separator (,)

Section C – Transaction Record Structure

Field Position	Length	Type	Mandatory /Optional / Conditional	Description	Remarks
1	2	N	M	Record Type	"10" is Detail Record
2	10	N	O	Payment Type	Values : "10" - AutoCredit & IBG "20" – RENTAS
3	20	AN	M	Unique Record Number	Transaction unique number to ease tracking via Return File
4	15,2	N	M	Crediting Amount	Amount to be credited for each transaction, e.g. RM18,888.30 = 18888.30
5	17	AN	C	Receiving Member Bank	BIC/SWIFT Address. Refer to Appendix BICSWIFT Mandatory if the Payment Type is IBG and Rentas
e	1	N	C	BOP - Indicator	For IBG and RENTAS Only, Beneficiary Status - Resident = "1" Non Resident = "2" Spaces for other payment mode.
7	96	AN	M	Beneficiary Name	Crediting Account Name
8	20	N	M	Beneficiary Account Number	Crediting Account Number
9	2	N	O	Beneficiary ID indicator	a) 01 - New IC b) 02 - Old IC c) 03 - Passport No d) 04 - Army/ Police e) 05 - Business Registration Number
10	15	AN	O	Beneficiary IC/Passport/Business Registration #	ID Number
11	40	AN	O	Beneficiary Address 1	Only applicable if Payment Type is RENTAS
12	40	AN	O	Beneficiary Address 2	Only applicable if Payment Type is RENTAS
13	40	AN	O	Beneficiary Address 3	Only applicable if Payment Type is RENTAS
14	20	AN	M	Recipient Reference	Recipient Reference will appear in crediting account statement
15	20	AN	O	Other Payment Details	Other Payment Details will appear in crediting account statement
16	100	AN	C	Transfer Details (TRN)	Only applicable if Payment Type is RENTAS "GOV03" "IFT03" Default to "IFT03" if blank
17	33	AN	O	Member to Member Information 1	Only applicable if Payment Type is RENTAS
18	33	AN	O	Member to Member Information 2	Only applicable if Payment Type is RENTAS
19	35	AN	C	By Order Of	Only applicable if Payment Type is RENTAS
20	35	AN	O	By Order Of Address 1	Only applicable if Payment Type is RENTAS
21	35	AN	O	By Order Of Address 2	Only applicable if Payment Type is RENTAS
22	35	AN	O	By Order Of Address 3	Only applicable if Payment Type is RENTAS
23	70	AN	O	By Order Of Email Address	Only applicable if Payment Type is RENTAS
24	32	AN	O	Beneficiary Name 2	Only applicable if Payment Type is RENTAS
25	2	N	O	Indicator Beneficiary ID 2	Only applicable if Payment Type is RENTAS transfer to JOINT account a) '01' is for New IC b) '02' is for Old IC c) '03' is for Passport d) '04' is for Army / Police e) '05' is for Business Registration Number
26	15	AN	O	Beneficiary ID 2	Only applicable if Payment Type is RENTAS transfer to JOINT account
27	50	AN	O	Applicant Email	Only applicable if Payment Type is RENTAS
28	300	AN	O	Email Address	Payment Notification. Multiple email has to include ; as separator e.g.: abc@rhbgroup.com;def@rhbgroup.com
29	100	AN	O	Filler	to key in separator (,)
30	100	AN	O	Filler	to key in separator (,)
31	100	AN	O	Filler	to key in separator (,)
32	100	AN	O	Filler	to key in separator (,)
33	100	AN	O	Filler	to key in separator (,)

Section D – Advice Record Structure

Field Position	Length	Type	Mandatory /Optional	Description	Remarks
1	2	N	O	Record Type	"20" is Advice-Free Record
2	2000	AN	O	Payment Details	Details will be send in the payment notification to beneficiary
3	100	AN	O	Filler	to key in separator (,)
4	100	AN	O	Filler	to key in separator (,)
5	100	AN	O	Filler	to key in separator (,)
6	100	AN	O	Filler	to key in separator (,)
7	100	AN	O	Filler	to key in separator (,)

Advice - Table Details (Optional)
Field Position	Length	Type	Mandatory /Optional	Description	Remarks
1	2	N	O	Record Type	"30" is Advice-Table Details Record
2	8	AN	O	Invoice Date	DDMMYYYY
3	15,2	N	O	Invoice Amount	Amount of the invoice line
4	20	AN	O	Invoice No.	Invoice Number
5	20	AN	M	Invoice Detail	Invoice Detail
6	100	AN	O	Filler	to key in separator (,)
7	100	AN	O	Filler	to key in separator (,)
8	100	AN	O	Filler	to key in separator (,)
9	100	AN	O	Filler	to key in separator (,)

Section E – Footer Structure

Field Position	Length	Type	Mandatory /Optional	Description	Remarks
1	2	N	M	Record Type	"99" is Footer
2	20	AN	M	File Batch Number	File Batch number, same as header
3	6	N	M	Total Count	Total number of transaction/record in the batch
4	15,2	N	M	Total Amount	Total Debiting Amount
5	15	N	M	Hash Total	Refer to Hash Total Sheet
6	100	AN	O	Filler	to key in separator (,)
7	100	AN	O	Filler	to key in separator (,)
8	100	AN	O	Filler	to key in separator (,)
9	100	AN	O	Filler	to key in separator (,)
10	100	AN	O	Filler	to key in separator (,)

Calculate Checksum

How to calculate hash total

A	Accumulation of (last 6 significant digits of beneficiary account number * last 6 digits of amount field ; excluding cents)
B	A * 24
C	B + 2994

Hash total = Integer part (C / 285)

Sample

Example of Sample Data for Consolidated File Format - to Calculate Checksum (Payment Mode):

ACCOUNT NUMBER	AMOUNT
2865374890	RM1000.50
286537464890	RM1000.00
286537464890	RM1000.00
286537464890	RM1000.00
3185456	RM1000.00

Calculation:

BENEFICIARY ACCOUNT NUMBER (Last 6 digits)	DEBITING AMOUNT (Last 6 digits - Excluding decimal)	TOTAL (A)
374890	1000	374890000
464890	1000	464890000
464890	1000	464890000
464890	1000	464890000
185456	1000	185456000
	A	1955016000
	B	46920384000
	C	46920386994
	HASH TOTAL	164632936.8

Return File
Filename : YYYYMMDD__<6 digit="" running="" number="">_ack4.csv

Field Position	Length	Type	Mandatory /Optional	Description	Remarks
1	2	N	M	Record Type	"10" is Detail Record
2	10	N	O	Payment Type	"10" - AutoCredit & IBG (10) "20" - RENTAS (20)
3	20	AN	M	Unique Record Number	Corporate transaction unique number to ease tracking purposes
4	15,2	N	M	Crediting Amount	Amount to be credited for each transaction, e.g. RM18,888.30 = 000000000018888.30 Excluding separator
5	17	AN	O	Receiving Member Bank	BIC/SWIFT Address. Refer to Appendix BICSWIFT
6	1	N	C	BOP - Indicator	For IBG and RENTAS Only, Beneficiary Status - Resident = "1" Non Resident = "2" Spaces for other payment mode.
7	96	AN	M	Beneficiary Name	Crediting Account Short Name Break to 32x each
8	20	N	M	Beneficiary Account Number	Crediting Account Number
9	2	N	O	Beneficiary ID indicator	a) 01 - New IC b) 02 - Old IC c) 03 - Passport No b) 04 - Army/ Police c) 05 - Business Registration Number
10	15	AN	O	Beneficiary IC/Passport/Business Registration #	Applicable for IBG/RENTAS Append the ID/IC number after 'Beneficiary ID Indicator'
11	40	AN	O	Beneficiary Address 1	Only applicable if Field 2 (Payment Type) is RENTAS
12	40	AN	O	Beneficiary Address 2	Only applicable if Field 2 (Payment Type) is RENTAS
13	40	AN	O	Beneficiary Address 3
14	20	AN	M	Recipient Reference
15	20	AN	O	Other Payment Details
16	5	AN	C	Transfer Details (TRN)	Only applicable if Field 2 (Payment Type) is RENTAS "GOV03" "IFT03" Default to "IFT03" if blank
17	33	AN	O	Member to Member Information 1
18	33	AN	O	Member to Member Information 2
19	35	AN	C	By Order Of	Default to Debiting account name if field is empty Applicable for Rentas only
20	35	AN	O	By Order Of Address 1	Applicable for Rentas only
21	35	AN	O	By Order Of Address 2	Applicable for Rentas only
22	35	AN	O	By Order Of Address 3	Applicable for Rentas only
23	70	AN	O	By Order Of Email Address	Applicable for Rentas only
24	32	AN	O	Beneficiary Name 2	Crediting Account Short Name (Rentas Usage) Leave empty with trailing space if no value. This field used for Joint account New field use for Rentas. Only 32X will be used for Rentas. Remaining last 8x will be truncate.
25	2	N	O	Indicator Beneficiary ID 2	(Rentas Usage) a) '01' is for New IC b) '02' is for Old IC c) '03' is for Passport d) '04' is for Army / Police e) '05' is for Business Registration Number Leave empty with trailing space if no value. This field used for Joint account.
26	15	AN	O	Beneficiary ID 2	(Rentas Usage) Leave empty with trailing space if no value. This field used for Joint account. No Symbols. Append the ID/IC number after the ID Type
27	50	AN	O	Applicant Email	Applicant Email Address(Rentas Usage) Email notification will be sent upon successful crediting to beneficiary account
28	300	AN	N	Email Address	Beneficiary email address. This field can field up with multiple email address by separating the value with semicolon ';' Need to mapped upfront
29		AN	O	Filler	to key in separator (,)
30	8	AN	M	Status	Status of the record
31	500	AN	M	Reason	Unsuccessful Reason

Appendix (BICSWIFT)

a. IBG

BANK NAME	BIC Code
AFFIN ISLAMIC BANK BHD	AIBBMYKL
AGRO BANK	AGOBMYKL
AL-RAJHI BANKING & INVESTMENT CO ALLIANCE ISLAMIC BANK BHD	RJHIMYKL
ALLIANCE ISLAMIC BANK BHD	ALSRMYKL
AMISLAMIC BANK BHD	AISLMYKL
Affin Bank	PHBMMYKL
Alliance Bank	MFBBMYKL
Ambank	ARBKMYKL
BANK OF CHINA (MALAYSIA) BERHAD	BKCHMYKL
BANK OF TOKYO	BOTKMYKX
BANK SIMPANAN NASIONAL - SPI	BSNAMY21
BNP Paribas Malaysia Berhad	BNPAMYKL
Bank Islam	BIMBMYKL
Bank Muamalat	BMMBMYKL
Bank Rakyat	BKRMMYKL
Bank Simpanan Nasional	BSNAMYK1
Bank of America (Malaysia) Berhad	BOFAMY2X
CIMB Bank Berhad	CIBBMYKL
CIMB ISLAMIC BANK BHD	CTBBMYKL
CITIBANK	CITIMYKL
CITIBANK SPI	CITIMYM1
DEUTSCHE BANK - SPI	DEUTMY21
Deutsche Bank (Malaysia) Berhad	DEUTMYKL
HONG LEONG ISLAMIC BANK BHD	HLIBMYKL
HSBC AMANAH MALAYSIA BHD	HMABMYKL
HSBC Bank	HBMBMYKL
Hong Leong Bank	HLBBMYKL
INDUSTRIAL & COMMERCIAL BANK OF CHINA J.P.MORGAN CHASE BANK BERHAD	ICBKMYKL
J.P.MORGAN CHASE BANK BERHAD	CHASMYKX
Kuwait Finance House (Malaysia) Berhad MAYBANK ISLAMIC BHD	KFHOMYKL
MAYBANK ISLAMIC BHD	MBISMYKL
MIZUHO CORPORATE BANK (MALAYSIA) BERHAD	MHCBMYKA
Maybank	MBBEMYKL
OCBC AL-AMIN BANK BHD	OABBMYKL
OCBC Bank	OCBCMYKL
PUBLIC ISLAMIC BANK BHD	PIBEMYK1
Public Bank	PBBEMYKL
STANDARD CHARTERED SAADIQ BHD	SCSRMYKK
Standard Chartered Bank	SCBLMYKX
Sumitomo Mitsui Banking Corp Msia Berhad	SMBCMYKL
United Overseas Bank Berhad	UOVBMYKL

b. RENTAS

BANK NAME	BIC Code
AFFIN BANK BERHAD	PHBMMYKL
AFFIN HWANG INVESTMENT BANK BHD	HDSBMY2P
AFFIN INVESTMENT BANK BERHAD	PAMBMYK1
AFFIN ISLAMIC BANK BHD	AIBBMYKL
AGROBANK	AGOBMYKL
AGROBANK-SPI	AGOBMY21
AL-RAJHI BANKING & INVESTMENT CO	RJHIMYKL
ALLIANCE BANK (M) BHD	MFBBMYKL
ALLIANCE INVESTMENT BANK BHD	MBAMMYKL
ALLIANCE INVESTMENT BANK BHD-SPI	MBAMMY21
ALLIANCE ISLAMIC BANK	ALSRMYKL
AMBANK BERHAD	ARBKMYKL
AMINVESTMENT BANK BHD	AMMBMYKL
AMINVESTMENT BANK BHD-SPI	AMMBMY21
AMISLAMIC BANK BERHAD	AISLMYKL
ASIAN FINANCE BANK BHD	AFBQMYKL
BANGKOK BANK	BKKBMYKL
BANK ISLAM MALAYSIA BERHAD	BIMBMYKL
BANK MUAMALAT MALAYSIA BERHAD	BMMBMYKL
BANK NEGARA MALAYSIA	BNMAMYKL
BANK OF AMERICA	BOFAMY2X
BANK OF CHINA (M) BHD	BKCHMYKL
BANK OF NOVA SCOTIA	NOSCMYKL
BANK OF TOKYO	BOTKMYKX
BANK OF TOKYO-MITSUBISHI UFJ-SPI	BOTKMY21
BANK PEMBANGUNAN	PEMBMYK1
BANK PEMBANGUNAN - SPI	PEMBMY21
BANK SIMPANAN NASIONAL	BSNAMYK1
BANK SIMPANAN NASIONAL - SPI	BSNAMY21
BNP PARIBAS MALAYSIA BERHAD	BNPAMYKL
BNP PARIBAS-SPI	BNPAMY21
BURSA MALAYSIA DEPOSITORY	MCDSMYK1
Bank Kerjasama Rakyat	BKRMMYKL
CAGAMAS	CAGAMYKL
CAGAMAS-SPI	CAGAMY21
CIMB BANK BERHAD	CIBBMYKL
CIMB INVESTMENT BANK	COIMMYKL
CIMB INVESTMENT BANK-SPI	COIMMY21
CIMB ISLAMIC BANK BHD	CTBBMYKL
CITIBANK	CITIMYKL
CITIBANK-SPI	CITIMYM1
China Construction Bank (M) Berhad	PCBCMYKL
DEUTSCHE BANK	DEUTMYKL
DEUTSCHE BANK-SPI	DEUTMY21
ECM LIBRA INVESTMENT BANK BHD	AVSSMYK1
EUROCLEAR BANK	MGTCBEBE
EXIM BANK-SPI	EXMBMY21
EXPORT IMPORT BANK BERHAD	EXMBMYKL
HONG LEONG BANK BERHAD	HLBBMYKL
HONG LEONG INVESTMENT BANK BERHAD	HLIVMYKL
HONG LEONG ISLAMIC BANK BERHAD	HLIBMYKL
HSBC AMANAH MALAYSIA BERHAD	HMABMYKL
HSBC BANK	HBMBMYKL
INDIA INTERNATIONAL BANK (M) BHD	IIMBMYKL
INDUSTRIAL & COMMERCIAL BANK OF CHINA (M) BHD	ICBKMYKL
J.P MORGAN CHASE BANK BERHAD	CHASMYKX
KAF INVESTMENT	KAFBMYKL
KAF INVESTMENT-SPI	KAFBMY21
KENANGA INVESTMENT BANK BHD	KKENMYK1
KENANGA INVESTMENT- SPI	KKENMY21
KUMPULAN WANG AMANAH PERSARAAN	KWAPMYK1
KUMPULAN WANG PERSARAAN (DIPERBADANKAN)	KWAPMYK2
KUMPULAN WANG SIMPANAN PEKERJA	KWSPMYK1
KUWAIT FINANCE HOUSE	KFHOMYKL
MALAYAN BANKING BERHAD	MBBEMYKL
MALAYSIAN ELECTRONIC PAYMENT SYSTEM SDN BHD (MEPS)	MEPSMYK1
MAYBANK INVESTMENT BANK	MBEAMYKL
MAYBANK INVESTMENT BANK-SPI	MBEAMY21
MAYBANK ISLAMIC BHD	MBISMYKL
MIDF AMANAH INVESTMENT	MIDFMYK1
MIDF AMANAH INVESTMENT-SPI	MIDFMY21
MIMB INVESTMENT BANK BHD	MIMBMYKL
MIZUHO BANK (MALAYSIA) BERHAD	MHCBMYKA
NATIONAL BANK OF ABU DHABI MALAYSIA BERHAD	NBADMYKL
OCBC AL-AMIN BANK BERHAD	OABBMYKL
OCBC BANK BERHAD	OCBCMYKL
PUBLIC BANK BERHAD	PBBEMYKL
PUBLIC INVESTMENT BANK BHD	SMBBMYK1
PUBLIC ISLAMIC BANK BHD	PIBEMYK1
RHB BANK BERHAD	RHBBMYKL
RHB INVESTMENT BANK BERHAD	OSKIMYKL
RHB ISLAMIC BANK BHD	RHBAMYKL
SME BANK	MSMEMYK1
SME BANK-SPI	MSMEMY21
STANDARD CHARTERED BANK	SCBLMYKX
STANDARD CHARTERED SAADIQ BANK BERHAD	SCSRMYKK
SUMITOMO MITSUI BANK BERHAD	SMBCMYKL
THE ROYAL BANK OF SCOTLAND BHD	ABNAMYKL
UNITED OVERSEAS BANK BHD	UOVBMYKL
